We manufacture three models of foldable solar wall lights at our Fujian facility. The defining feature: a hinged monocrystalline solar panel that folds flat for compact shipping, then opens to the optimal charging angle after installation. Every unit has five modes — an automatic microwave-sensor mode plus four constant brightness levels — and three color temperatures, all from a single button.
Our BF-SWL-17 Series spans 1W to 3.5W, covering entrance gates, perimeter walls, garden paths, stairways, and security fence lines. We ship to property developers, hospitality chains, security contractors, and lighting distributors across 30+ countries. No wiring. No electrician. Surface-mount with 2 screws.
Solar Wall Light Specifications: Complete Model Comparison
All three models share the same industrial design, material construction, and control logic. They differ in size, solar panel wattage, battery capacity, and LED chip count — scaling linearly for different illumination requirements.
| Spec | BF-SWL-17-1W | BF-SWL-17-1.8W | BF-SWL-17-3.5W |
|---|---|---|---|
| Dimensions | 120 × 85 × 38 mm | 155 × 105 × 38 mm | 190 × 125 × 38 mm |
| Solar Panel Power | 5V / 1W Monocrystalline | 5V / 1.8W Monocrystalline | 5V / 3.5W Monocrystalline |
| Battery | 18650 3.7V / 1200mAh | 18650 3.7V / 1800mAh | 18650 3.7V / 2500mAh |
| LED Chips (White) | 2835 (48 pcs) | 2835 (66 pcs) | 2835 (88 pcs) |
| LED Chips (Warm White) | 2835 (32 pcs) | 2835 (44 pcs) | 2835 (66 pcs) |
| Color Temperature | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K |
| IP Rating | IP65 | IP65 | IP65 |
| Operating Temp | -30°C to 60°C | -30°C to 60°C | -30°C to 60°C |
| Material | ABS body + metal bracket + glass reflector cup | Same | Same |
| Modes | Microwave auto + 4 constant levels, 3 color temps | Microwave auto + 4 constant levels, 3 color temps | Microwave auto + 4 constant levels, 3 color temps |
All models use dual-chip LED arrays (white 6000K + warm white 3000K) blended to achieve 4000K neutral white as the third option. The glass reflector cup provides focused downward illumination with minimal light spill.
Five Modes: Microwave Sensor Plus Four Constant Levels
Every BF-SWL-17 Series model has five modes, selected by short-pressing the control button:
| Mode | Behaviour | Best For |
|---|---|---|
| Mode 1 | Microwave auto — 100% when someone is in range, 15% standby when nobody is | Side gates, service paths, stairways, anywhere traffic is intermittent |
| Mode 2 | 100% constant | Loading docks, active work areas, security perimeter |
| Mode 3 | 75% constant | Hospitality, ambient perimeter |
| Mode 4 | 50% constant | Garden paths, low-traffic areas |
| Mode 5 | 25% constant | Overnight accent, wayfinding |
Constant modes (2-5) use curve dimming — the controller eases output down as battery voltage drops instead of cutting off abruptly, which extends effective runtime and avoids the sudden blackout common in cheaper solar lights.
Color temperature: long press cycles 3000K → 4000K → 6000K. Microwave night-light: double-click turns the sensor function on or off. The light retains your last mode and color temperature after each power cycle.
Sensor Mode or Constant Mode? When to Use Each
The same fixture does both, so the choice is per location rather than per product.
| Situation | Set It To | Why |
|---|---|---|
| Side gate, service path, back stairway — people pass a few times a night | Mode 1 (microwave auto) | 15% standby between visitors is the lowest draw of any mode, so runtime through a cloudy week is longest |
| Hotel walkway, entrance feature wall — the light is the ambiance | Mode 3 or 4 (75% / 50% constant) | Steady output; a light that jumps to full brightness whenever a guest walks past reads as a fault, not a feature |
| Security perimeter, loading dock — continuous coverage required | Mode 2 (100% constant) | Cameras and patrols need an unbroken light level, not a sensor deciding when to activate |
| Wall next to moving foliage or a busy road | Constant mode | Microwave sensing responds to motion, and swaying branches or passing traffic in range will keep waking the light |
Microwave sensing works through the sealed housing — there is no separate sensor window to seal — and it responds to movement rather than body heat, so it is unaffected by hot-weather glare that troubles PIR units. The trade-off is the one in the last row: it cannot tell a person from a moving bush. For the engineering behind the two sensor types, see PIR vs microwave sensor solar lights.
For a complete guide on choosing solar wall lights, see the battery chemistry, brightness selection, and installation considerations discussed in our product specifications above.
Which Model Fits Your Project?
The three models serve different scale requirements within the same application types. Use this table as a starting point — then contact our team for project-specific recommendations.
| Application | Recommended Model | Color Temp | Mode | Why This Configuration |
|---|---|---|---|---|
| Residential entrance gates | BF-SWL-17-1.8W or BF-SWL-17-3.5W | 3000K (warm) | Mode 3 (75%) | Welcoming ambiance with balanced brightness and runtime |
| Perimeter security walls | BF-SWL-17-3.5W | 6000K (cool) | Mode 2 (100%) | Maximum brightness, covers wider wall span |
| Hotel / resort walkways | BF-SWL-17-1.8W | 3000K (warm) | Mode 4 (50%) | Consistent warm glow, hospitality-grade atmosphere |
| Garden paths and borders | BF-SWL-17-1W | 4000K (neutral) | Mode 1 (microwave auto) | Lights up on approach, 15% standby stretches runtime; compact size blends with landscaping |
| Stairways and steps | BF-SWL-17-1.8W | 4000K (neutral) | Mode 3 (75%) | Safety illumination, neutral tone for true color rendering |
| Parking area fence lines | BF-SWL-17-3.5W | 6000K (cool) | Mode 2 (100%) | Maximum constant output, high output per unit |
| Construction site perimeter | BF-SWL-17-3.5W | 6000K (cool) | Mode 2 (100%) | Maximum constant output, zero wiring for temporary sites |
| Residential development (bulk) | BF-SWL-17-1.8W | 3000K (warm) | Mode 4 (50%) | Cost-to-performance sweet spot for 200-2000 unit orders |
For complete project planning across residential properties, see our Residential Solar Lighting Solutions. For security-focused deployments, visit Security Solar Lighting Solutions.
Certifications and Quality Assurance

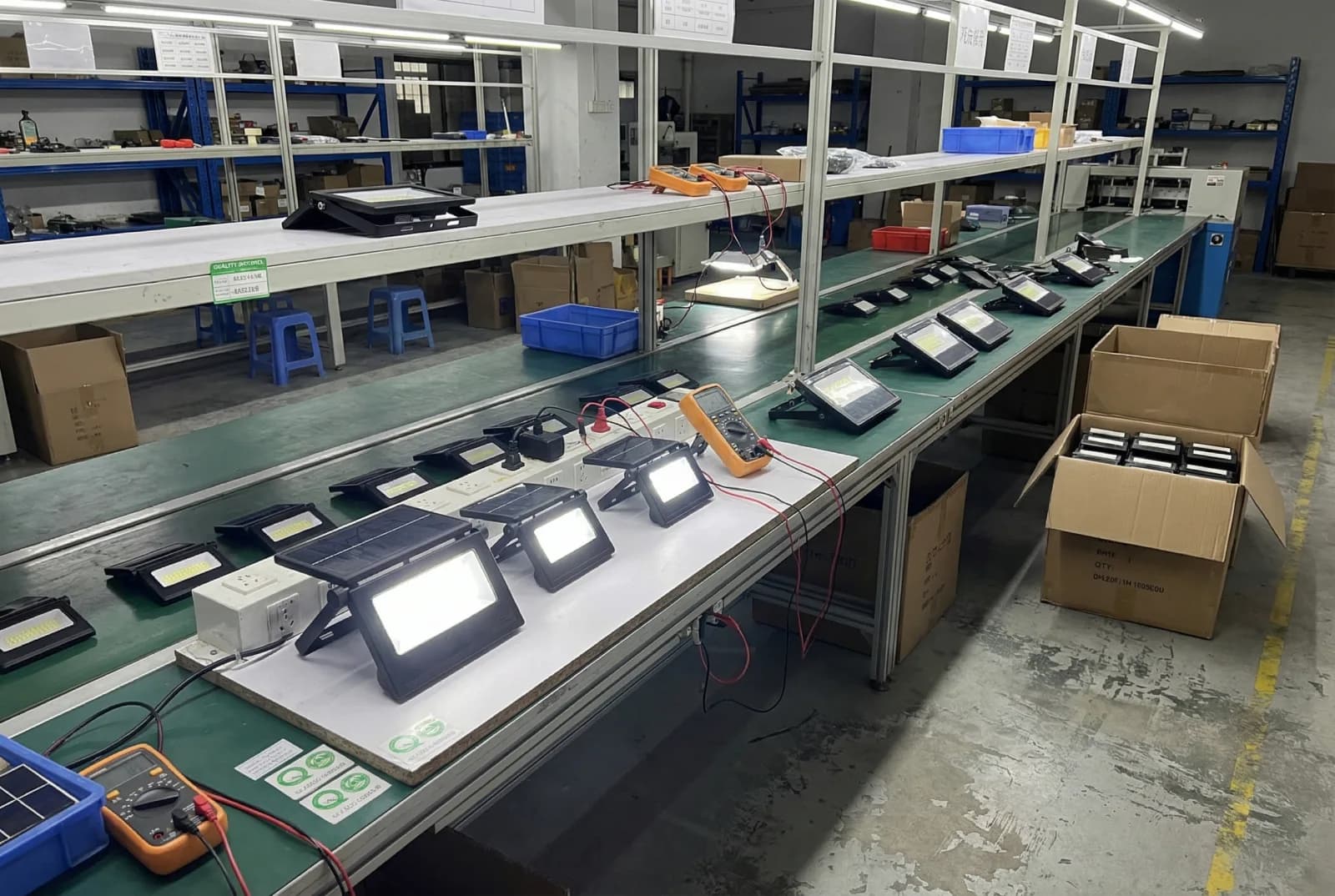

We test every production batch — not random sampling, but 100% functional verification before shipment.
Certifications held:
- CE (European Conformity)
- IP65 Ingress Protection (dust-tight, water jet resistant)
- UN38.3 (18650 battery transport safety)
Quality process:
- Incoming inspection — LED chip binning verification, 18650 cell capacity and internal resistance testing, solar panel flash test
- Assembly QC — foldable hinge torque verification, waterproof seal integrity, dimming circuit calibration
- 100% aging test — every unit runs 8 hours at full power before packing
- Mode function test — all 5 modes (microwave trigger and 4 constant levels) and 3 color temperatures verified per unit
Production credentials:
- Manufacturing since 2013
- Shipped to distributors and project buyers in 30+ countries
- 85% repeat order rate from B2B customers
- Standard 18650 battery means global replacement availability — no proprietary cells
How to Order: From Inquiry to Delivery
Step 1: Inquiry and Consultation
Tell us your project requirements — application type, quantity, preferred model, color temperature, and installation environment. Our team responds within 24 hours with pricing and configuration recommendations.
Step 2: Sample Order (Optional)
Order 1-5 sample units for field testing. Sample dispatch: shipped worldwide via DHL/FedEx. We recommend testing all 5 modes and 3 color temperatures in your specific installation environment. Sample cost is deducted from your first bulk order.
Step 3: Bulk Order and Production
Confirm model, quantity, and customization details. Proforma invoice issued within 24 hours. Production lead time: 15-35 days for standard models, 25-55 days for OEM. Lead time depends on order specifications and quantity. Payment: T/T 40% deposit, 60% balance before shipment (or as agreed in the contract).
Step 4: Quality Inspection and Shipping
100% functional test on your production batch. QC photos and videos sent before packing. FOB, or CIF/DDP to your door. The foldable design means higher container density — expect 30-40% more units per container compared to fixed-panel wall lights.
OEM/ODM Customization
| Customizable Item | Options | MOQ |
|---|---|---|
| Housing Color | Black, white, grey, or any RAL color | 30 pcs |
| Logo / Branding | Laser engraving or pad printing | 30 pcs |
| Default Mode Setting | Factory-preset any of the 5 modes | 30 pcs |
| Default Color Temp | Factory-preset 3000K, 4000K, or 6000K | 30 pcs |
| Packaging | Custom box with your brand and manual | 30 pcs |
| Battery Capacity | Upgraded 18650 cells (e.g., 3000mAh) | 30 pcs |
for custom specifications. DFM (Design for Manufacturability) review included in the quotation process.
Get Started with Your Solar Wall Light Project
Whether you are outfitting a residential development, upgrading a hotel property, or supplying your distribution network — we are ready to support with factory-direct pricing and engineering consultation.
Two ways to start:
- Get a quote: Tell us your model preference, quantity, and project timeline. We respond within 24 hours with pricing, lead time, and shipping estimate.
- Request samples: Test the BF-SWL-17-1W, BF-SWL-17-1.8W, or BF-SWL-17-3.5W in your actual installation environment. Dispatched within 7 days.
- Download datasheet: Product Datasheet (PDF) — full specifications, dimensions, and certifications.
