Motion Sensor Solar Street Lights

We manufacture 6 models of motion sensor solar street lights across 2 series at our Fujian factory. These are not the same product as our constant-brightness solar street lights (BF-SSL-20 Series/W021/W022). The difference is the motion sensor that controls brightness based on human presence.

The operating principle: the light runs at 30% brightness when nobody is around, then ramps to 100% when the motion sensor detects human presence. After the person or vehicle leaves the detection zone, the light holds full output for 15-30 seconds before stepping back down. This 30/100 duty cycle saves 40-60% battery compared to running at constant brightness all night — which means we can use smaller solar panels and smaller batteries while delivering the same peak lumens.

Our 10-25W range covers residential pathways, community perimeter roads, low-traffic rural roads, and parking lot edges. Two design styles: the BF-MSS-23 Series (compact body, separate panel/light sections) and BF-MSS-24 Series (ultra-slim integrated profile). Both use LiFePO4 batteries, 5054 LED chips, and the same Light+Time+Motion Sensor control logic.

Motion Sensor Solar Street Light Specifications

All 6 models share these common specifications: 6000±500K color temperature, LiFePO4 (lithium iron phosphate) battery, Light+Time+Motion Sensor control mode, monocrystalline silicon solar panel, 0-50°C charging range, -20-60°C discharging range. The motion sensor on all models operates in the same 30% standby / 100% active profile.

BF-MSS-23 Series — Compact Body

Compact profile with clearly separated solar panel and light module sections. The BF-MSS-23-25W (10W) fits 3M poles for pathways and garden lanes. The BF-MSS-23-40W (20W) and BF-MSS-23-50W (25W) handle 5-6M poles for residential streets and community roads.

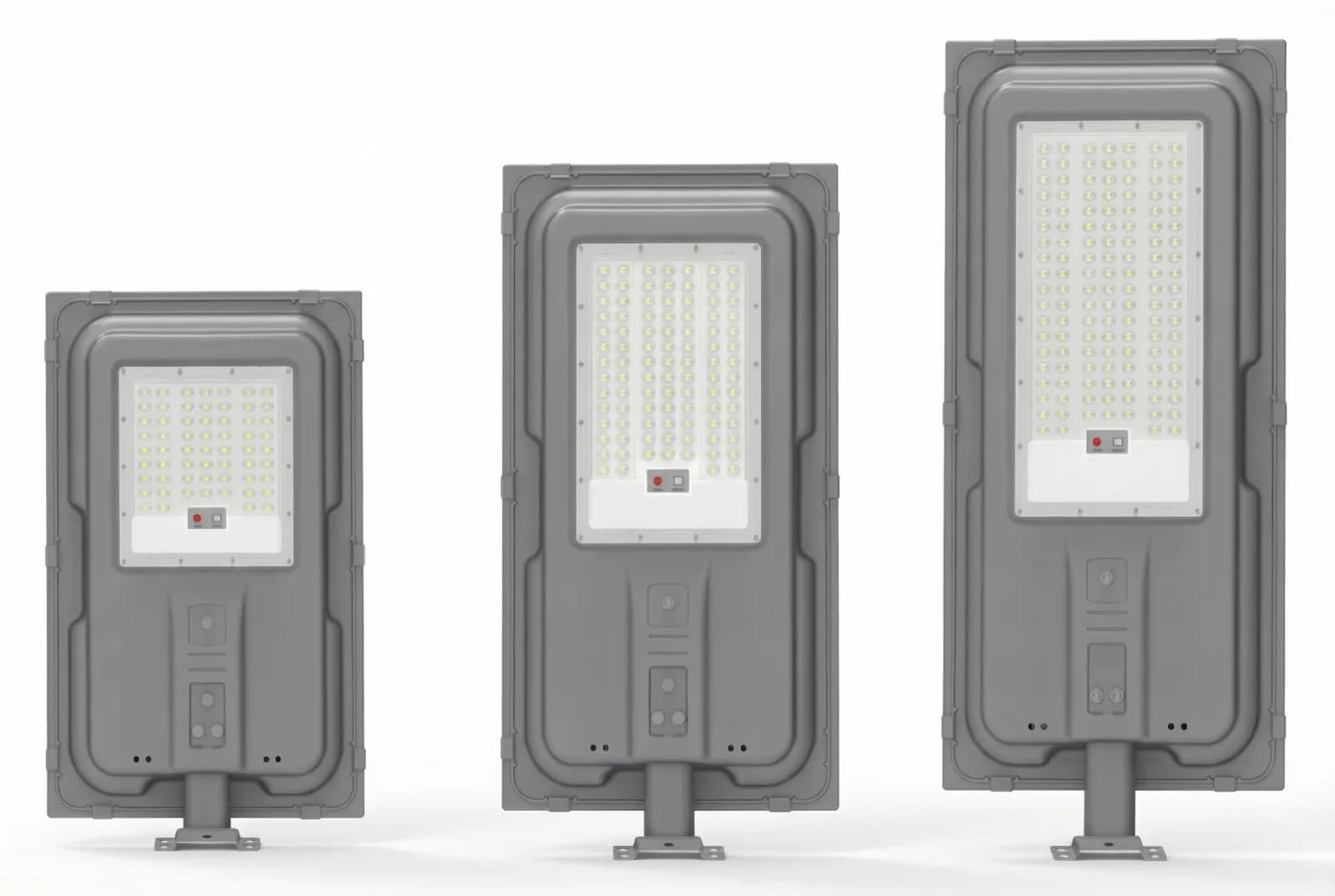

BF-MSS-24 Series — Ultra-Slim Integrated

Ultra-slim integrated body with a 70mm depth profile. All three models share the same slim silhouette — the panel and light housing merge into a single flat form factor. Visually cleaner on modern poles and architectural installations.

All models use high-efficiency 5054 LED chips rated for long-service-life. Die-cast aluminum housing with tempered glass lens. LiFePO4 batteries rated for 2,000+ charge cycles (5-8 years of daily use).

Motion Sensor vs Constant-Brightness: Same Wattage, Different Engineering

This is the core decision: do you need light all night at full power, or only when someone is actually there? The answer determines which product line is correct for your project. Here is a direct comparison using our 20W models from each line.

The motion sensor model achieves the same 3,800 LM peak output with a 38% smaller solar panel (40W vs 65W) and a 20% smaller battery (192Wh vs 240Wh). We designed the motion sensor model with a smaller battery because the engineering math supports it: the light spends most of the night at 30% output, so the average energy demand drops dramatically. This allows a smaller power system without sacrificing peak performance.

• Low-traffic residential streets where full brightness is only needed when residents walk or drive
• Rural roads with infrequent nighttime traffic
• Perimeter pathways around communities, construction sites, and parking lots
• Security applications where the brightness change itself serves as a visual deterrent

• Main roads and arterials with continuous traffic flow
• Commercial areas where consistent illumination is a regulatory requirement
• Parking lots that stay active throughout the night
• Government projects with constant-lux specifications in the tender

Neither product is better in absolute terms. They solve different problems. The motion sensor models trade constant illumination for energy efficiency. The constant-brightness models trade energy efficiency for uninterrupted output. Choose based on your traffic pattern, not marketing claims.

Which Model Fits Your Project?

Certifications and Quality Control

We apply the same quality process to motion sensor models as our constant-brightness street lights — with additional motion sensor validation steps.

• CE (European Conformity)
• IP65 Ingress Protection (dust-tight, low-pressure water jet resistant)
• RoHS (Environmental Compliance)
• UN38.3 (Battery Transport Safety)

1. Incoming material inspection — LED chip binning verification, LiFePO4 cell capacity and internal resistance testing, solar panel flash test, motion sensor component screening
2. Assembly QC — waterproof seal integrity test, motion sensor detection calibration, controller logic verification (30% standby / 100% active transition)
3. 100% aging test — every unit runs 24 hours at full power before packing
4. Motion sensor function test — we test every unit's motion sensor individually for detection response, trigger response time, and false trigger rate before it leaves our production line
5. Photometric spot check — lumen output verified against spec sheet values using integrating sphere

• Manufacturing since 2013
• Shipped to contractors, installers, and municipal buyers across 30+ countries
• 85% repeat order rate from existing B2B customers
• 0 customs seizure records

How to Order: From Inquiry to Delivery

Whether you need 2 samples or 2,000 units, here is our standard procurement process.

Step 1: Inquiry and Consultation

Tell us your project requirements — location, pole height, road width, expected nighttime traffic pattern. Our engineering team will recommend the optimal model and quantity. For motion sensor models, traffic frequency matters more than road geometry — it determines whether the battery savings justify the sensor approach. Response time: within 24 hours.

Step 2: Sample Order (Optional)

Order 1-2 sample units to test motion sensor detection and sensitivity in your actual environment. Mount at your target pole height and observe the 30% → 100% → 30% transition cycle. Sample dispatch: shipped worldwide via DHL/FedEx. Sample cost is deducted from your first bulk order.

Step 3: Bulk Order and Production

Confirm model, quantity, and any customization. We issue a proforma invoice. Production lead time: 15-35 days for standard models, 25-55 days for OEM/custom orders. Lead time depends on order specifications and quantity. Payment: T/T 40% deposit, 60% balance before shipment (or as agreed in the contract).

Step 4: Quality Inspection

100% aging test and motion sensor function test on your production batch. We send QC photos and videos before packing. Third-party inspection (SGS, Bureau Veritas) welcome at our factory.

Step 5: Shipping

FOB, or CIF/DDP to your port. Professional wooden crate packing for container loads. We handle export customs clearance and provide all shipping documents (commercial invoice, packing list, Bill of Lading, certificate of origin).

OEM/ODM Customization

for custom specifications. Sensor sensitivity calibration and DFM (Design for Manufacturability) review included in the quotation process.

Frequently Asked Questions

Get Started with Your Motion Sensor Solar Street Light Project

Whether you are lighting a residential community, securing a construction perimeter, or supplying your distribution network with a differentiated product — we are ready to support with factory-direct pricing and engineering consultation.

• Get a quote: Tell us your quantity, installation scenario, and expected traffic pattern. We respond within 48 hours with model recommendations tailored to your project's traffic patterns, including pricing and a battery savings estimate for your specific use case.
• Request samples: Test the BF-MSS-23 Series or BF-MSS-24 Series in your actual installation environment. Verify the motion sensor detection, the 30% → 100% brightness transition, and the battery autonomy before committing to a bulk order. Dispatched within 7 days.
• Download datasheet: Product Datasheet (PDF) — full specifications, dimensions, and certifications.
