No two smart pole projects are alike. A commercial district may need lighting + WiFi + LED display. A traffic intersection may need surveillance + sensors + emergency call. An industrial park may need lighting + EV charging + environmental monitoring. We do not sell fixed SKUs — we configure each pole to your site requirements and provide itemized module-by-module pricing.
We have delivered smart pole projects to municipal planners, urban developers, and infrastructure contractors across Asia and the Middle East since 2013. All poles support 3G/4G/5G communication as standard.
Pole Styles: 6 Designs Across 2 Series
We offer six pole designs in two series. Each design shares the same modular mounting system — any of our 10 functional modules can be installed on any pole style. The difference between styles is aesthetic profile and application optimization.
| Pole Style | Series | Design Character | Best For |
|---|---|---|---|
| BF-SMP-C1 | Comprehensive | Sleek geometric silhouette, angular LED arm, contemporary urban profile | City main roads, new development zones, smart city showcase corridors |
| BF-SMP-C2 | Comprehensive | Curved organic form, flowing LED arm, softer visual presence | Parks, riverside walks, residential neighborhoods, scenic areas |
| BF-SMP-C3 | Comprehensive | Tapered column with layered module tiers, vertical emphasis | Commercial plazas, pedestrian streets, shopping districts |
| BF-SMP-C4 | Comprehensive | Dual-arm asymmetric design, accommodates road + pedestrian lighting | Mixed-use boulevards, campus central roads, transit corridors |

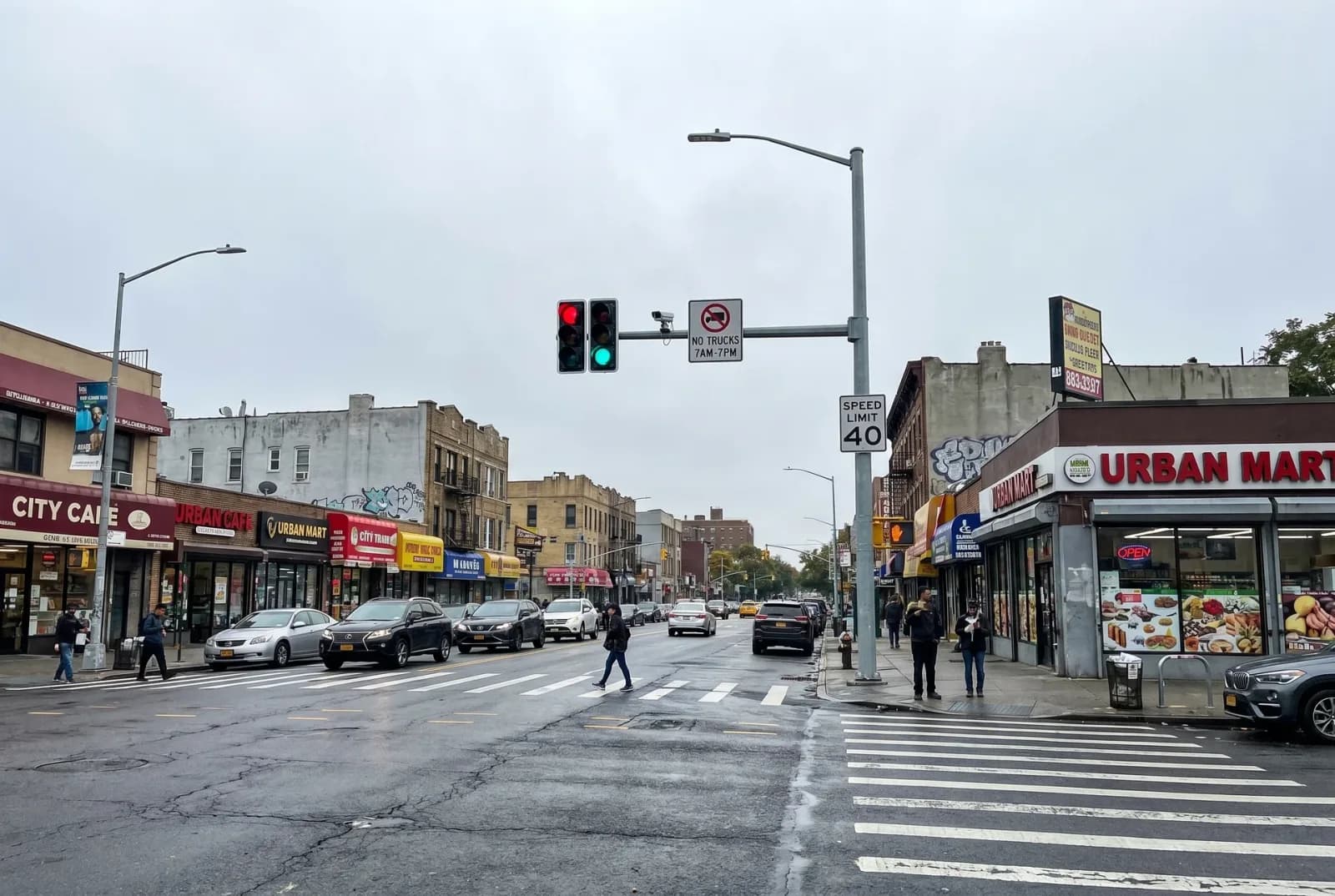

| BF-SMP-T01 | Traffic | Heavy-duty straight column, reinforced signal arm mounting | Major intersections, highway on/off ramps, traffic monitoring stations |

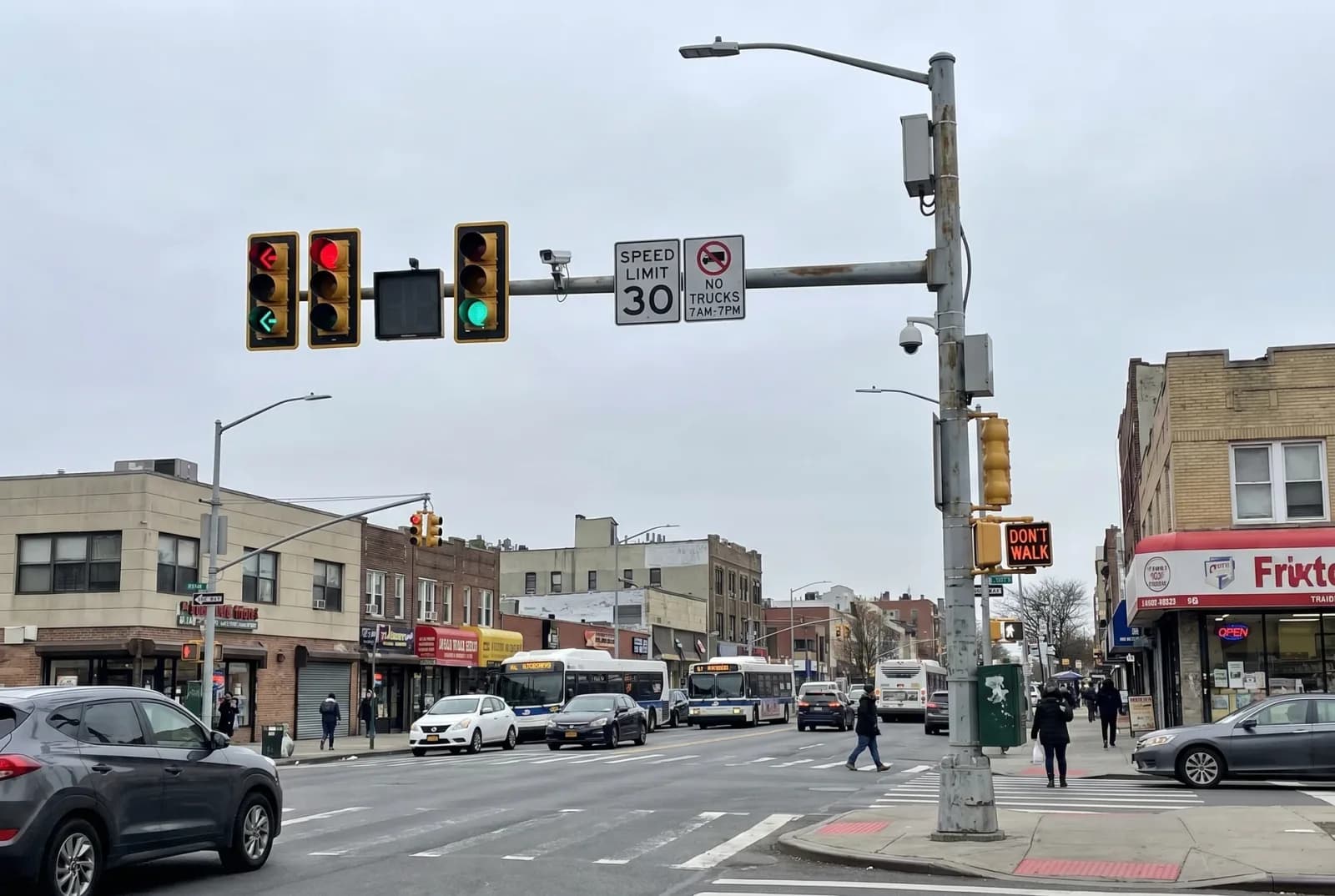

| BF-SMP-T02 | Traffic | Cantilever arm design with extended reach, multi-lane signal span | Wide intersections, expressway toll areas, multi-lane arterials |
Modular Feature Specifications: 10 Functions, Mix and Match
Every module below is independently selectable. Install two modules or all ten — the pole structure and power distribution system accommodate any combination. All modules connect to a central smart pole controller with 3G/4G/5G uplink for remote monitoring and management.
| Module | Key Specifications | Typical Power | Mounting Position |
|---|---|---|---|
| Intelligent Lighting | Dimmable LED, on/off scheduling, voltage/power monitoring, energy consumption analytics, fault alerts, DIS map strategy control, loop monitoring | Configurable (50-200W) | Top arm |
| Video Surveillance | 3MP HD PTZ camera, 360 degree pan/tilt, 1080P recording, local storage, smart detection (area intrusion, boundary crossing, audio anomaly, motion, video tampering), NVR support, public security network access, remote viewing | ~15W | Upper bracket |
| Smart EV Charging | Built into pole base, international connectors, platform management, APP-based self-service payment, remote management, carrier-grade reliability, monthly settlement support | Variable (7-22kW) | Lower pole section |
| Public Address | 30W waterproof column speaker, background music playback, emergency broadcast, scheduled content, two-way intercom with monitoring center | ~35W | Mid bracket |
| One-Button Emergency Call | Direct voice link to monitoring center, vandal-resistant panel, LED status indicator | ~5W | Eye-level panel |
| WiFi Hotspot | Embedded base station, dual-band 2.4GHz / 5GHz, 200 concurrent connections, 70m effective range, multiple authentication modes, operations platform, probe analytics, pedestrian flow statistics | ~20W | Upper section |
| LED Information Display | Electronic screen for city information (weather, environment data), advertising operations, emergency alert display, zone-based content scheduling | 50-150W | Mid section |
| Sensor Extension | Infrared sensor, radar detection, traffic flow monitoring, RFID communication | ~10W | Various positions |
| 5G Micro Base Station | Pre-engineered mounting position with power supply and cable routing for carrier-provided base station equipment, relay coverage for mobile/telecom operators | Carrier-dependent | Top section |
| Environmental Monitoring | Noise level, air pollution (PM2.5, PM10), temperature, humidity, altitude, wind direction, wind speed, rainfall, water level — real-time data upload | ~15W | Upper bracket |
Smart Pole vs Traditional Separate Infrastructure
Cities have historically installed lighting, cameras, WiFi, signals, and displays on separate poles and structures. A single block can accumulate 15-20 standalone poles, each with its own foundation, power feed, and maintenance schedule. Smart multi-function poles consolidate this infrastructure.
| Parameter | Smart Multi-Function Pole | Traditional Separate Infrastructure |
|---|---|---|
| Street clutter | 1 pole replaces 5-8 standalone structures | 5-8 poles per block for different functions |
| Installation cost | Single foundation, single power feed, single cable trench | Multiple foundations, multiple trenches, multiple contractors |
| Maintenance | One maintenance point, remote diagnostics via 4G/5G | Separate maintenance contracts per system |
| Future-proofing | Add modules to existing poles as needs evolve | New poles and new trenching for each new function |
| 5G readiness | Pre-engineered mounting — carrier installs base station on existing pole | Build new cell towers or negotiate rooftop leases |
| Data integration | All sensors feed one controller, one platform | Siloed data systems, no cross-function analytics |
| Urban aesthetics | Unified design language across all functions | Visual chaos from mismatched poles, brackets, and boxes |
| Deployment speed | Factory pre-assembled, on-site install in 1 day per pole | Weeks of sequential installation by different teams |
Application Scenarios: Which Modules for Which Project?
Smart poles serve different purposes in different environments. Use this matrix as a starting point — then contact our engineering team with your site details for a tailored configuration.| Application | Recommended Style | Recommended Modules | Why This Configuration |
|---|---|---|---|
| Smart city main road | BF-SMP-C1 or C4 | Lighting + Surveillance + WiFi + LED Display + Environmental Monitoring | Full smart city showcase — data collection, public services, and visual presence |

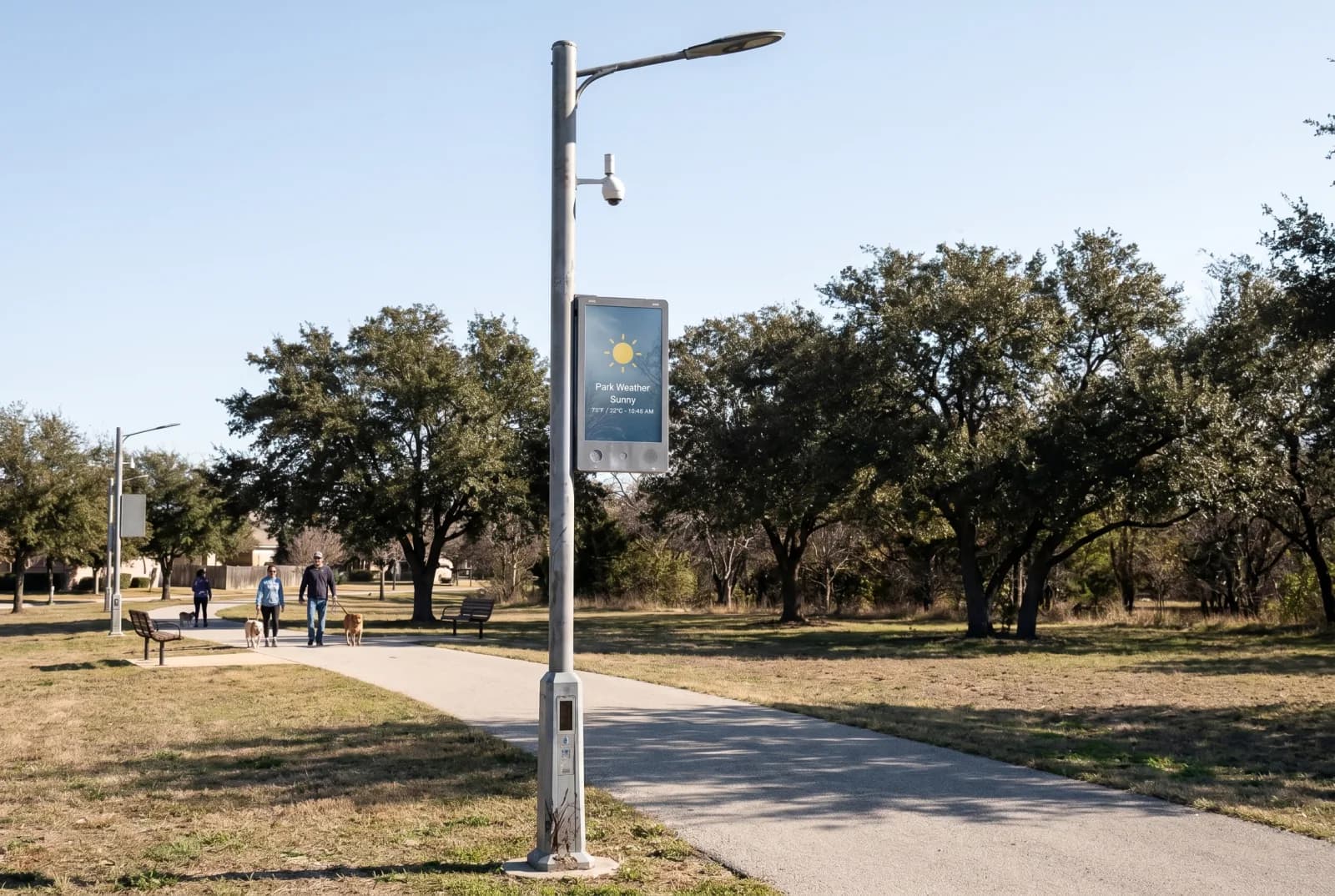

| Park / garden | BF-SMP-C2 | Lighting + WiFi + Public Address + Emergency Call | Safe public space — connectivity, background music, emergency response |

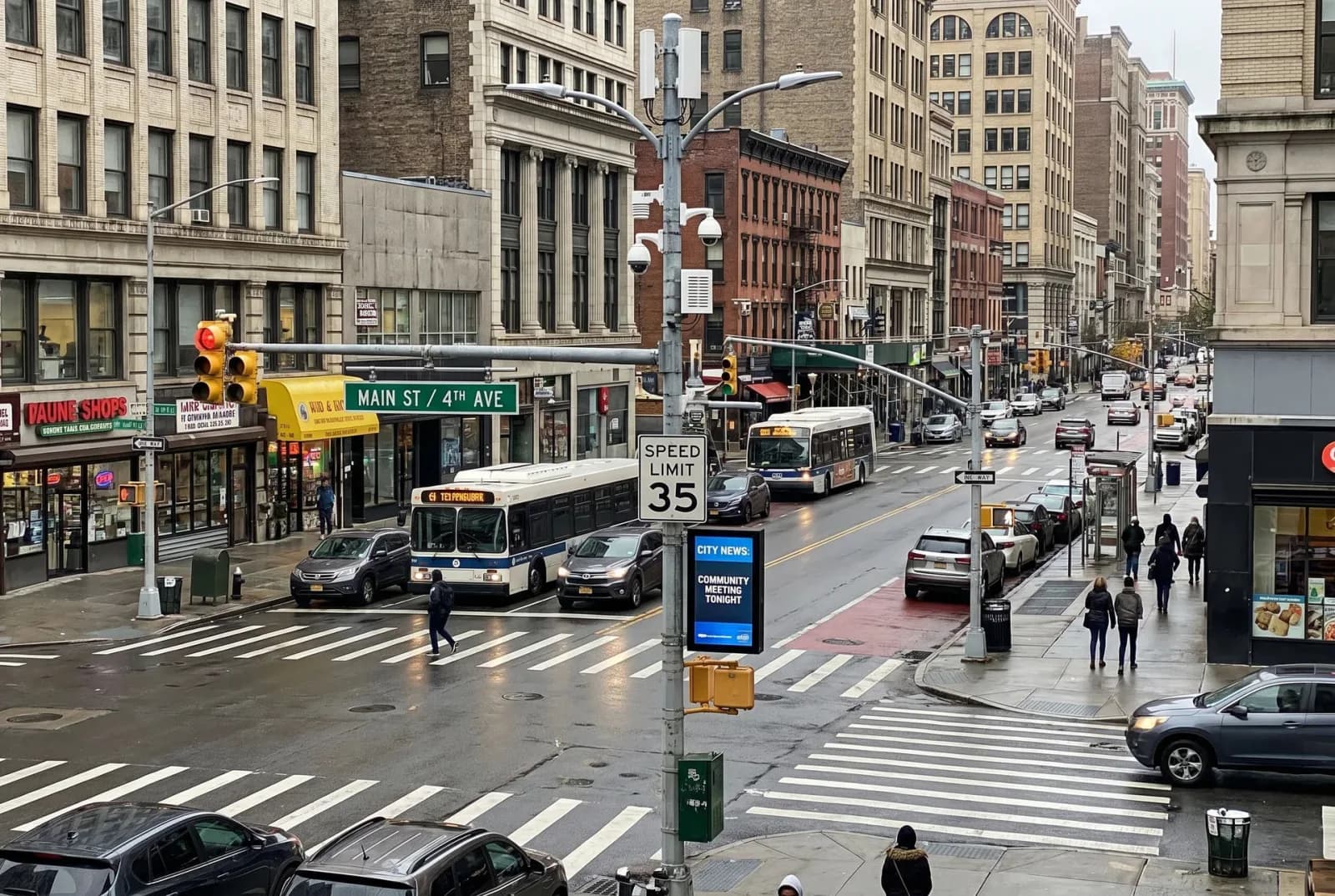

| Traffic intersection | BF-SMP-T01 or T02 | Lighting + Surveillance + Sensor Extension + Public Address | Traffic monitoring, flow analytics, incident detection, emergency broadcast |

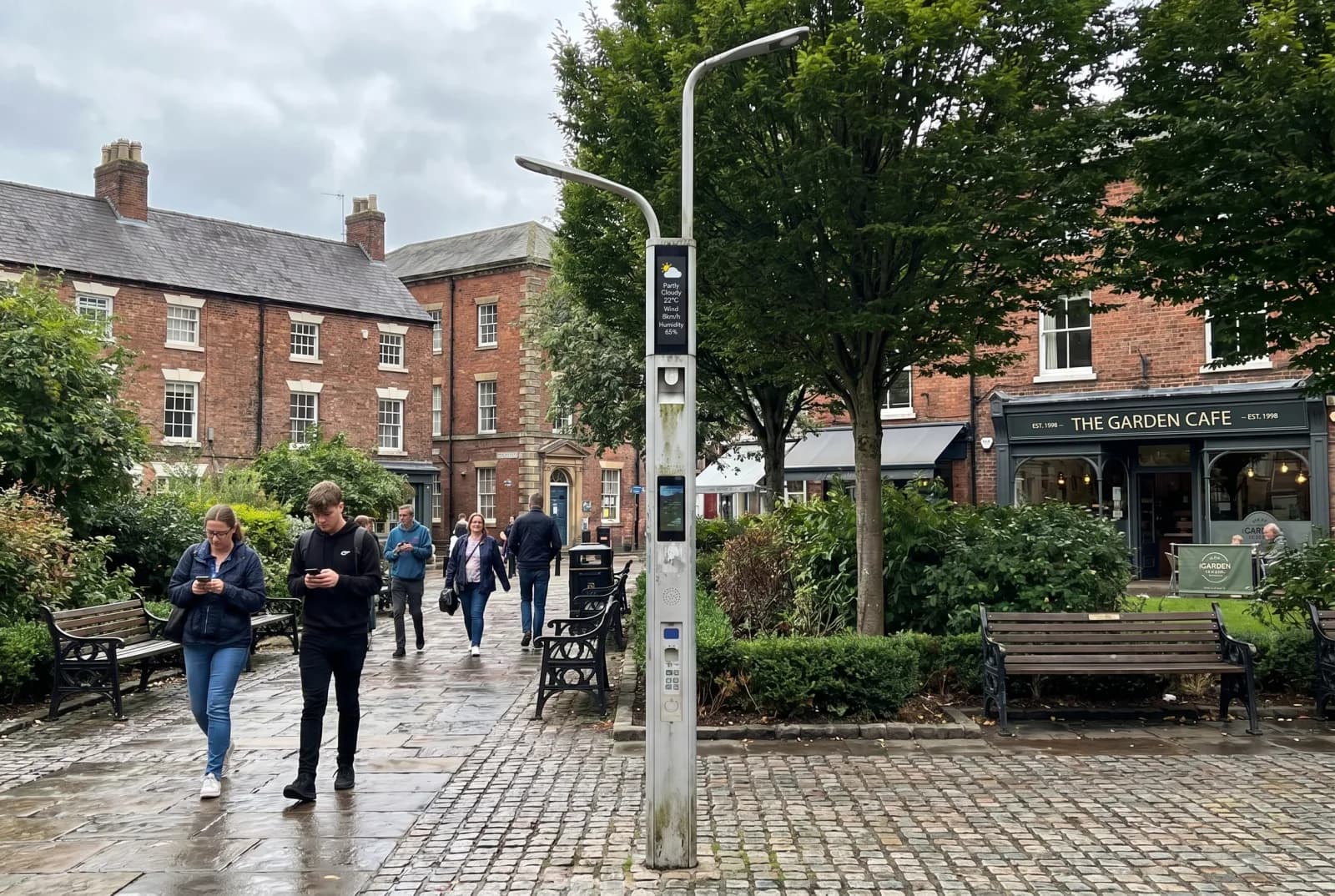

| Commercial district | BF-SMP-C3 | Lighting + WiFi + LED Display + EV Charging | Revenue-generating pole — advertising display, paid WiFi, EV charging fees |
| Industrial park | BF-SMP-C1 | Lighting + Surveillance + Environmental Monitoring + EV Charging | Compliance monitoring (air quality), security, employee EV charging |
| University campus | BF-SMP-C2 or C4 | Lighting + WiFi + Emergency Call + Public Address + Surveillance | Student safety, campus-wide connectivity, emergency notification |
| Highway / expressway | BF-SMP-T02 | Lighting + Surveillance + Sensor Extension + 5G Base Station | Long-range coverage, traffic flow data, carrier partnership for 5G relay |

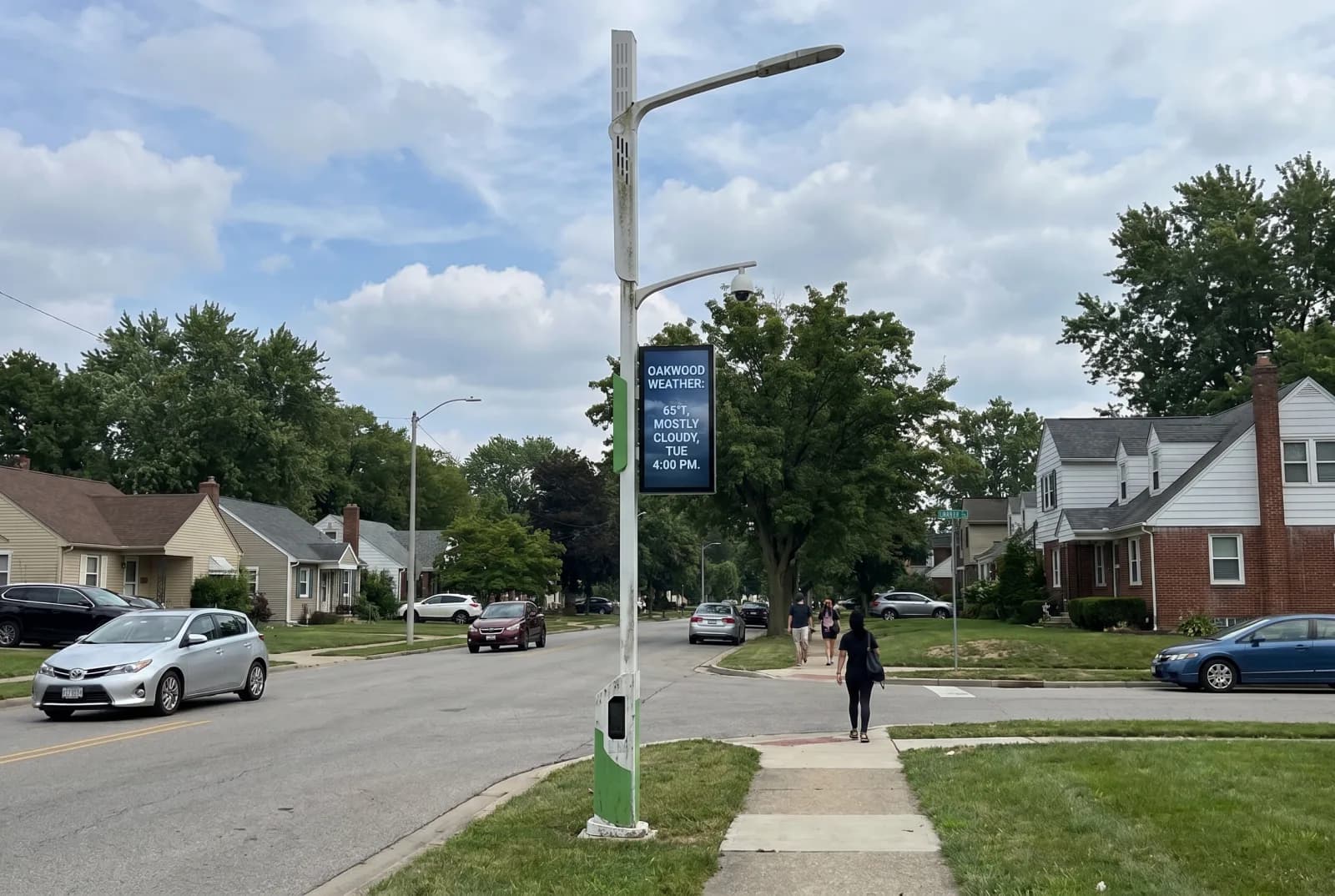

| New residential district | BF-SMP-C2 | Lighting + Surveillance + WiFi + EV Charging + Emergency Call | Modern community amenities — security, connectivity, EV infrastructure |
Not sure which modules you need? Start with lighting + surveillance as your base configuration — these two modules deliver immediate value in any setting. Add WiFi, display, or EV charging based on your revenue model or public service mandate.
Certifications and Manufacturing
We engineer and manufacture smart multi-function poles at our Fujian production facility. The pole structure, electrical systems, and module integration are all handled in-house — we do not outsource final assembly.
Certifications held:- CE (European Conformity) — pole structure and electrical systems
- IP65 Ingress Protection — all outdoor-exposed modules
- Individual module certifications provided per configuration (camera, WiFi AP, EV charger, LED display each carry function-specific certifications)
- Production facility operational since 2013
- In-house capabilities: steel fabrication, hot-dip galvanizing, powder coating, electrical integration, firmware programming
- Complete vertical integration from raw steel to finished smart pole
- Shipped to municipal and commercial projects across Asia and the Middle East
- Engineering team provides structural load calculations, wind resistance analysis, and electrical load budgeting for every project
- Structural integrity — weld inspection (ultrasonic testing on critical joints), galvanizing thickness verification, straightness check
- Electrical systems — insulation resistance test, grounding continuity, surge protection verification, waterproof connector test
- Module integration — each module powered on and tested individually, then system-level integration test with central controller
- Communication verification — 4G/5G uplink tested, remote monitoring platform connectivity confirmed before shipment
How We Work: Custom Design Process
Smart poles are not catalog products. Every project goes through our engineering design process to ensure the right configuration, the right aesthetics, and the right budget.
Step 1: Project Requirements
Share your site details — location, pole count, road width, desired functions, aesthetic preference (C or T series), and any municipal standards or carrier requirements. Our engineering team responds within 48 hours.
Step 2: Engineering Design
We produce a 3D rendering of your configured pole showing all selected modules in their mounting positions. You see exactly what the finished pole looks like before committing to production. Revisions are unlimited at this stage.
Step 3: Itemized Quotation
We provide module-by-module pricing — pole structure, each functional module, controller, cables, and installation hardware listed separately. You can add or remove modules to hit your budget target without renegotiating the entire project.
Step 4: Production
After approval, production takes 30-60 days depending on pole count and module complexity. Poles are factory pre-assembled with all modules installed and tested. We send progress photos and QC reports during production.
Step 5: Shipping and Documentation
FOB or CIF/DDP to your port. Poles are shipped with protective packaging on flatbed containers. We provide complete documentation: structural drawings, electrical schematics, installation manuals, module operation guides, and certification packages.
Step 6: Installation Support
We provide detailed installation drawings with foundation specifications, cable routing plans, and module connection diagrams. For large projects, our engineering team is available for on-site installation guidance.
OEM Customization Options
| Customizable Item | Options | Notes |
|---|---|---|
| Pole Height | 6m - 12m (custom heights available) | Structural calculation provided per height |
| Finish Color | Any RAL color, powder coating or fluorocarbon paint | Color matching from sample or RAL code |
| Module Selection | Any combination of 10 modules | Itemized pricing per module |
| LED Wattage | 50W - 200W (configurable per project) | Optics customizable for road width |
| Display Size | Multiple sizes available | Brightness and resolution configurable |
| Camera Specification | 3MP standard, higher resolution available | PTZ range and smart detection configurable |
| EV Charger Type | International connectors, multiple power levels | 7kW / 11kW / 22kW options |
| Branding | Logo engraving on pole body, custom nameplates | Municipality or project branding |
| Smart Platform | Standard controller, or integration with your existing platform | MQTT / HTTP API / Modbus supported |
Frequently Asked Questions
Request a Custom Design Proposal
Every smart pole project starts with a conversation. Tell us your site, your functions, and your vision — we will deliver a 3D rendering and itemized quotation within one week.
Ready to start?- Request a custom proposal: Share your project requirements — location, pole count, desired modules, and aesthetic preference. Our engineering team will design your configured pole and provide module-by-module pricing.
- Schedule a technical consultation: For large-scale municipal or smart city projects, we offer video consultations with our engineering team to discuss integration requirements, platform connectivity, and deployment planning.
