We have shipped AC LED flood lights to contractors, sports facility operators, warehouse owners, and municipal buyers in 30+ countries since 2013.
Full Specifications: BF-LFL-28 Series vs BF-LFL-29 Series
Every model listed below uses high-efficiency 3030 SMD LED chips, industrial-grade drivers (100-277 VAC), die-cast aluminum housing, and IP65 ingress protection. Color temperature: 6000K (daylight white, adjustable on OEM orders).
BF-LFL-28 Series — Ultra-Slim Design (35mm)
Our thinnest flood light at just 35mm depth. Minimal wind load, clean aesthetics, and easy mounting on building facades, billboards, and structures with limited clearance.
| Spec | BF-LFL-28-50W | BF-LFL-28-100W | BF-LFL-28-150W | BF-LFL-28-200W | BF-LFL-28-300W | BF-LFL-28-400W |
|---|---|---|---|---|---|---|
| Power | 50W | 100W | 150W | 200W | 300W | 400W |
| Luminous Flux | 7,500 LM | 15,000 LM | 22,500 LM | 30,000 LM | 45,000 LM | 60,000 LM |
| Efficacy (nominal) | 150 lm/W | 150 lm/W | 150 lm/W | 150 lm/W | 150 lm/W | 150 lm/W |
| LED Array | 3030 x 72 | 3030 x 144 | 3030 x 216 | 3030 x 288 | 3030 x 436 | 3030 x 576 |
| Dimensions | 246x175x35mm | 296x215x35mm | 358x250x35mm | 390x270x35mm | 464x323x35mm | 510x370x35mm |
| Color Temp | 6000K +/- 500K | 6000K +/- 500K | 6000K +/- 500K | 6000K +/- 500K | 6000K +/- 500K | 6000K +/- 500K |
| Driver | Industrial-grade | Industrial-grade | Industrial-grade | Industrial-grade | Industrial-grade | Industrial-grade |
| Input Voltage | 100-277 VAC | 100-277 VAC | 100-277 VAC | 100-277 VAC | 100-277 VAC | 100-277 VAC |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Beam Angle | Contact us | Contact us | Contact us | Contact us | Contact us | Contact us |

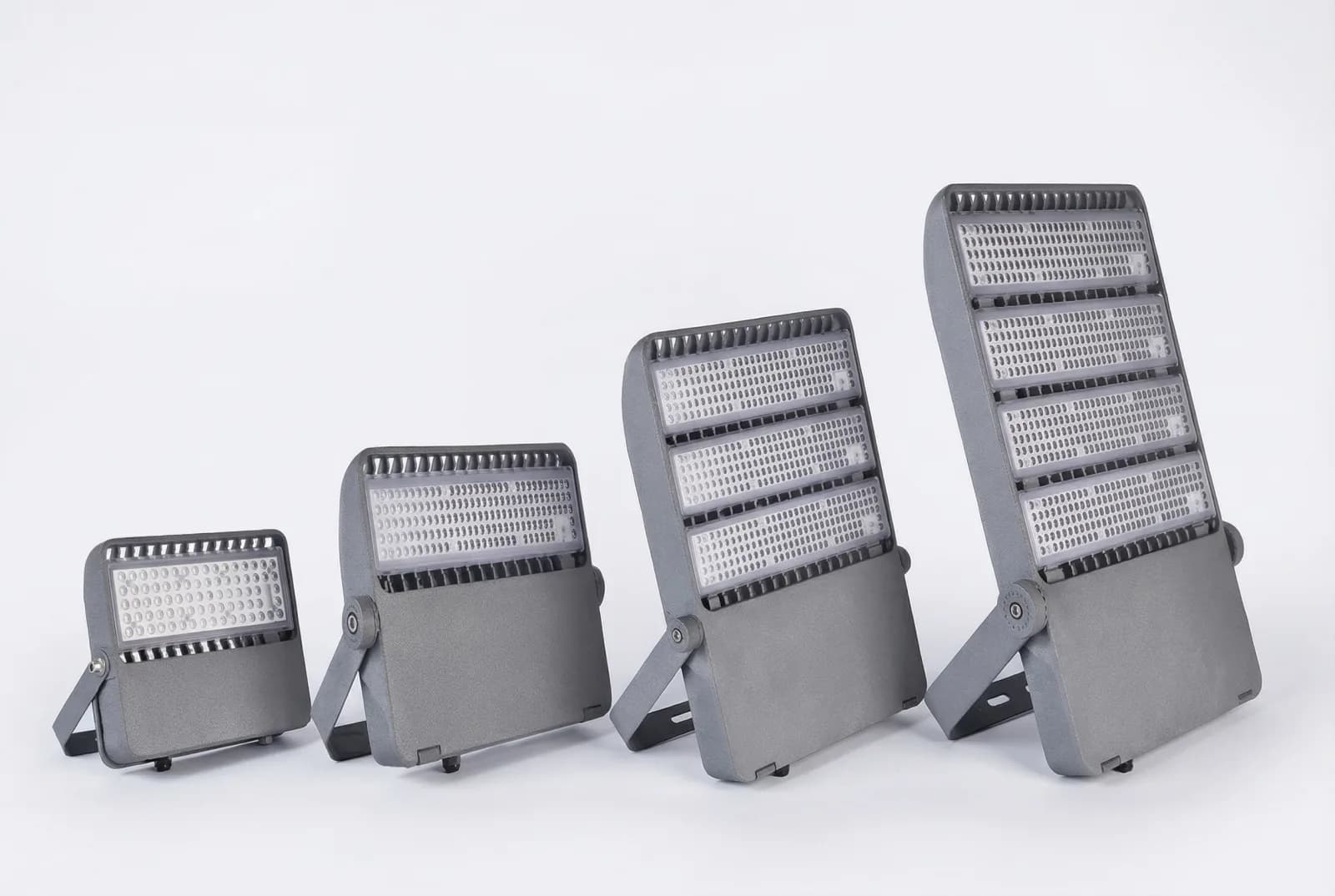

BF-LFL-29 Series — Modular Multi-Head Design
Our modular platform where higher-wattage models stack multiple 100W LED modules. Each module is independently replaceable — if one module fails after years of operation, swap it without replacing the entire fixture.
| Spec | BF-LFL-29-50W | BF-LFL-29-100W | BF-LFL-29-200W | BF-LFL-29-300W | BF-LFL-29-400W |
|---|---|---|---|---|---|
| Power | 50W | 100W | 200W | 300W | 400W |
| Luminous Flux | 7,500 LM | 15,000 LM | 30,000 LM | 45,000 LM | 60,000 LM |
| Efficacy (nominal) | 150 lm/W | 150 lm/W | 150 lm/W | 150 lm/W | 150 lm/W |
| LED Array | 3030 x 77 | 3030 x 147 | 3030 x 147 x 2 | 3030 x 147 x 3 | 3030 x 147 x 4 |
| Module Config | Single | Single | 2-head | 3-head | 4-head |
| Dimensions | 310x192x45mm | 395x248x58mm | 395x360x58mm | 495x395x60mm | 585x395x60mm |
| Color Temp | 6000K +/- 500K | 6000K +/- 500K | 6000K +/- 500K | 6000K +/- 500K | 6000K +/- 500K |
| Driver | Industrial-grade | Industrial-grade | Industrial-grade | Industrial-grade | Industrial-grade |
| Input Voltage | 100-277 VAC | 100-277 VAC | 100-277 VAC | 100-277 VAC | 100-277 VAC |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Beam Angle | Contact us | Contact us | Contact us | Contact us | Contact us |
BF-LFL-28 Series vs BF-LFL-29 Series: Which Series Fits Your Project?
Both series deliver identical lumen output at the same wattage. The difference is physical design philosophy. Here is a direct comparison to guide your selection:
| Decision Factor | BF-LFL-28 Series (Ultra-Slim) | BF-LFL-29 Series (Modular) |
|---|---|---|
| Body Thickness | 35mm (constant across all wattages) | 45-60mm (increases with module count) |
| Weight | Lighter at equivalent wattage | Heavier due to modular housing |
| Wind Load | Lower — critical for high-mount and exposed locations | Higher — acceptable for sheltered and ground-level mounts |
| Serviceability | Entire fixture replacement | Individual module replacement |
| Aesthetics | Sleek, minimal profile | Industrial, modular appearance |
| Heat Dissipation | Large single-surface fin array | Multiple independent thermal paths |
| Best For | Facades, billboards, architectural, height-restricted mounts | Stadiums, warehouses, parking lots, sports fields |
| Wattage Range | 50W - 400W (6 models) | 50W - 400W (5 models) |
Application Guide: Matching Power to Project
Our flood lights serve applications from 50W accent lighting to 400W stadium illumination. Use this matrix to find your starting configuration, then contact us for a free photometric layout.
| Application | Recommended Series | Recommended Power | Mounting Height | Why This Configuration |
|---|---|---|---|---|
| Building facade wash | BF-LFL-28 Series | 50-150W | 3-8M | Ultra-slim profile, minimal visual impact on architecture |
| Billboard / signage | BF-LFL-28 Series | 100-200W | 6-10M | Slim body fits behind billboard structures |

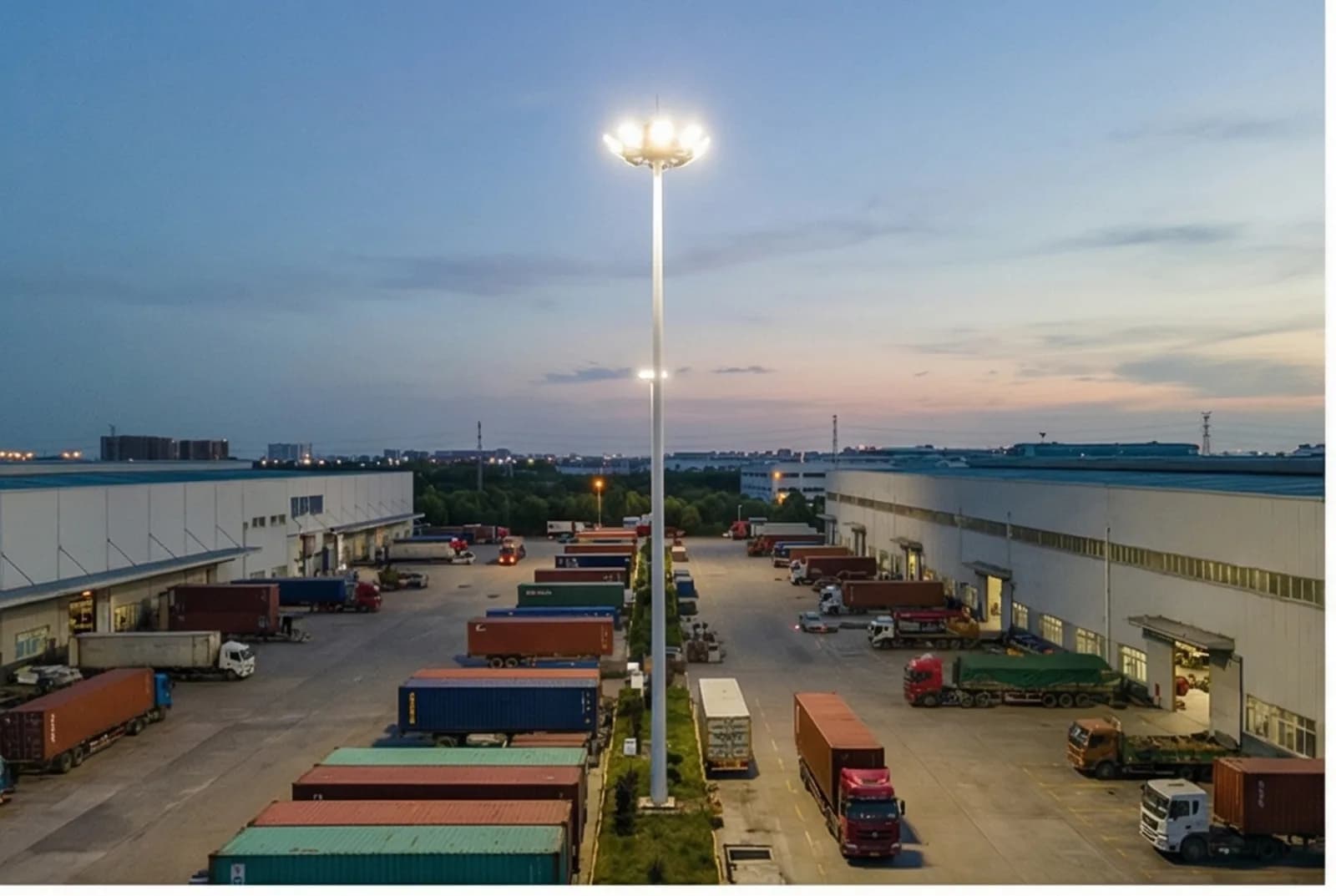

| Warehouse interior | BF-LFL-29 Series | 200-400W | 8-12M | Modular design for easy ceiling-mount maintenance |
| Parking lot / structure | BF-LFL-29 Series | 150-300W | 8-12M | Wide beam covers large rectangular areas |
| Sports field (community) | BF-LFL-29 Series | 200-400W | 10-15M | High output + field-serviceable at mast height |

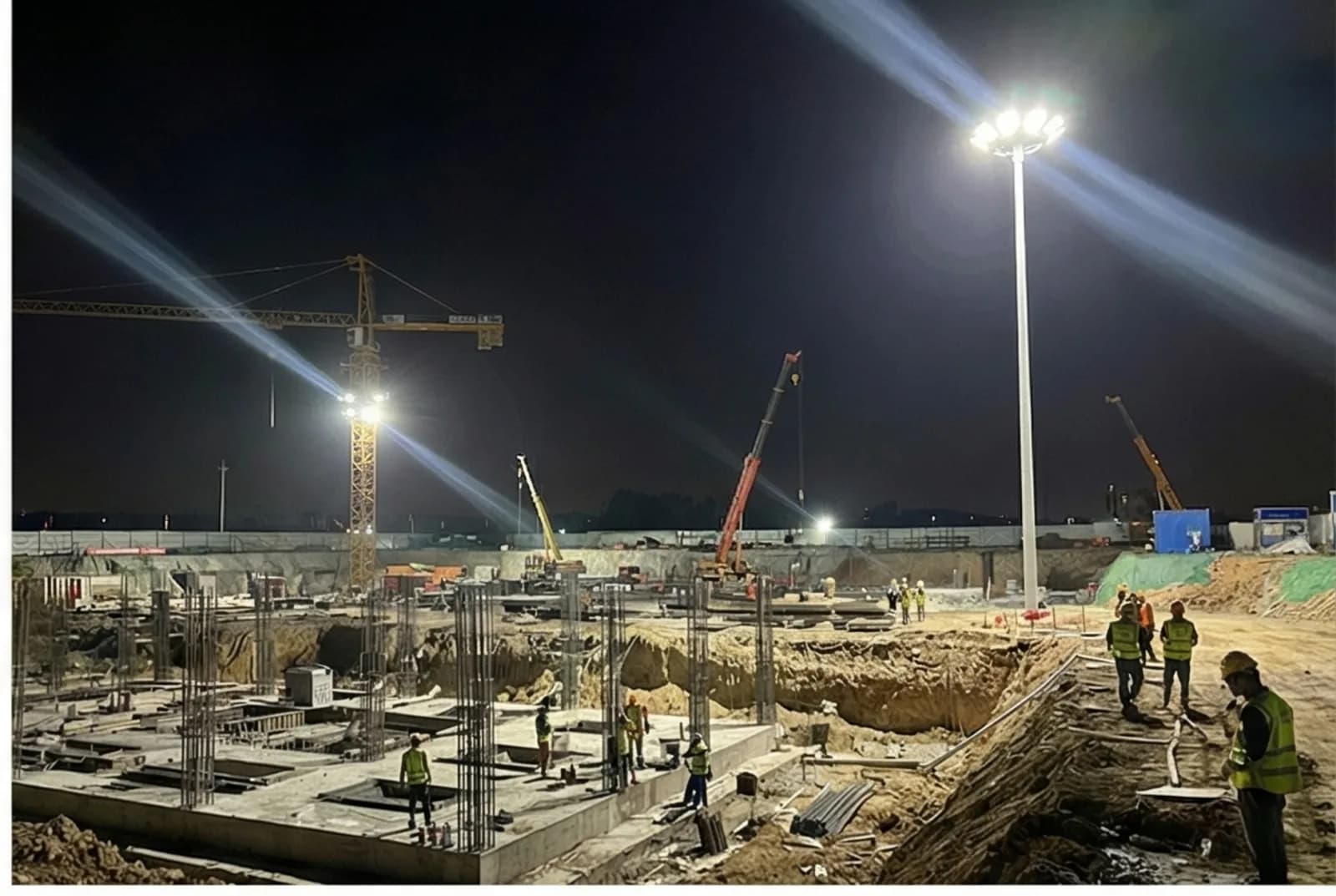

| Construction site | BF-LFL-28 Series | 100-200W | 6-10M | Lightweight, fast deploy/redeploy |
| Factory yard / perimeter | BF-LFL-28 Series or BF-LFL-29 Series | 100-200W | 6-10M | IP65 for permanent outdoor exposure |
| Landscape / garden accent | BF-LFL-28 Series | 50W | 3-5M | Low-power, architectural appearance |
Certifications and Quality Process
Every flood light we ship undergoes full production-line testing — not sample-based QC, but 100% unit verification.
Certifications held:- CE (European Conformity) — electromagnetic compatibility and safety
- IP65 Ingress Protection — dust-tight, water jet resistant
- Driver: UL / CE / CB certified independently
- Incoming inspection — LED chip binning verification (forward voltage, color consistency), driver burn-in test, aluminum housing dimensional check
- Assembly QC — thermal paste application verification, waterproof gasket compression test, wire torque check
- 100% aging test — every unit operates at full power for 24 hours before packing. Units that show lumen degradation, color shift, or driver anomaly are rejected
- Photometric spot check — integrating sphere measurement confirms lumen output matches published specifications
- Manufacturing at our Fujian facility since 2013
- Shipped to 30+ countries across 6 continents
- 85% repeat order rate from existing B2B customers
- Driver failure rate: less than 0.1% across all shipments
How to Order: From Inquiry to Delivery
Step 1: Inquiry and Consultation
Tell us your project type, fixture quantity, mounting height, and any special requirements (beam angle, color temperature, dimming). Our engineering team responds within 24 hours with a recommended configuration and FOB pricing.
Step 2: Sample Order (Optional)
Order 1-2 sample units to test in your environment. Sample dispatch: shipped worldwide via DHL/FedEx. Sample cost is deducted from your first bulk order.
Step 3: Bulk Order and Production
Confirm model, quantity, and customization. We issue a proforma invoice. Production lead time: 15-35 days for standard models, 25-55 days for OEM orders. Lead time depends on order specifications and quantity. Payment terms: T/T 40% deposit, 60% balance before shipment (or as agreed in the contract).
Step 4: Quality Inspection
100% aging test on your production batch. We send QC photos and test reports before packing. Third-party inspection (SGS, Bureau Veritas, TUV) welcome at our factory.
Step 5: Shipping
FOB, or CIF/DDP to your destination port. Professional packing with EPE foam and reinforced cartons. We handle export customs clearance and provide complete shipping documents (commercial invoice, packing list, Bill of Lading, certificate of origin).
OEM/ODM Customization
| Customizable Item | Options | MOQ |
|---|---|---|
| LED Wattage | 50W - 400W (any value within range) | 30 pcs |
| Color Temperature | 3000K / 4000K / 5000K / 6500K | 30 pcs |
| Housing Color | Black (standard), any RAL color | 30 pcs |
| Driver Brand | Multiple brands available (contact for options) | 30 pcs |
| Dimming Protocol | DALI / 0-10V / PWM | 30 pcs |
| Surge Protection | Multiple levels available (contact for options) | 30 pcs |
| Logo / Branding | Laser engraving or silkscreen | 30 pcs |
| Packaging | Custom box with your brand | 30 pcs |
Fast sample turnaround for custom configurations. DFM (Design for Manufacturability) review included in the quotation process.
Frequently Asked Questions
Get Started with Your LED Flood Light Project
Whether you are outfitting a stadium, lighting a warehouse, or building your distribution catalog — we are ready to support with engineering consultation, free photometric layouts, and competitive factory-direct pricing.
Ready to start?- Get a quote: Tell us your quantity, project type, and site details. We respond within 24 hours with pricing and recommended configuration for BF-LFL-28 Series or BF-LFL-29 Series series.
- Download datasheet: Product Datasheet (PDF) — full specifications, dimensions, and certifications.
